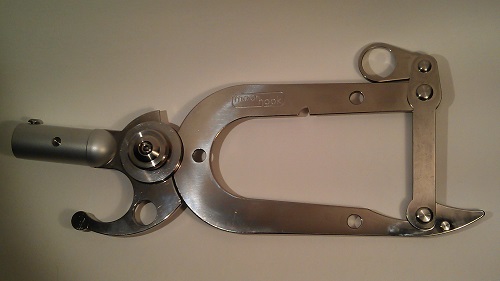

+ Made of seawater resistant stainless steel (Inox 316L)
+ Surface polished, edges rounded, logo engraved
|
| |
|
|
+ Connection pole diameter 22 mm, fits in 1'' (25 mm) telescope rods

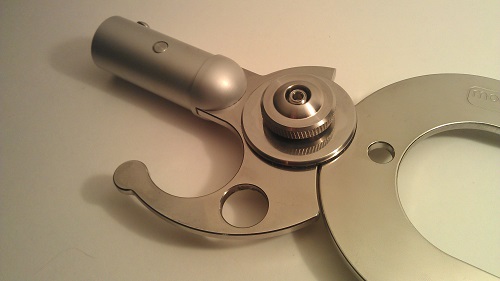

+ Fork rotatable 30 degrees or removable
|
| |
|
|
+ Fork opens 45 mm, to catch even big rings, rods a.o.
+ Claw at lower end of fork allows to pick up lying buoys rings.
|
| |
|
|
+ Pendulum eye diameter 18 mm, pivotable to guide mooring line
|

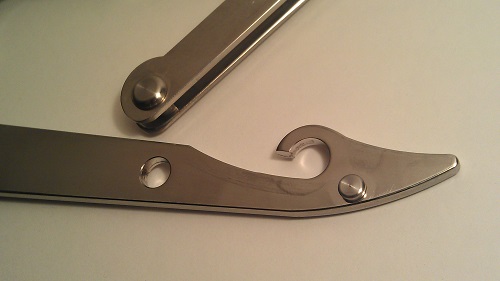

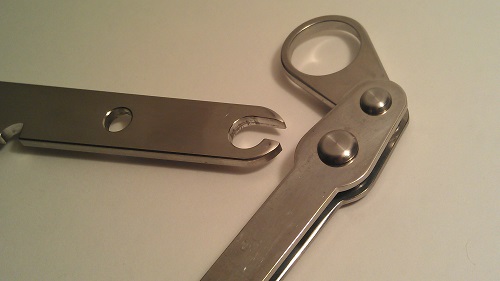

The pendulum is held in the fork by two crescent-shaped bolts.
When in use, always only one of the two bolts releases the pendulum, the other bolt holds the pendulum in the fork,
so the pendulum cannot fall out of the fork.
|
